Subaru Ascent 2018-2026 Owner's Manual: Light control and wiper control levers/switches

Subaru Ascent 2018-2026 Owner's Manual / Illustrated index / Light control and wiper control levers/switches

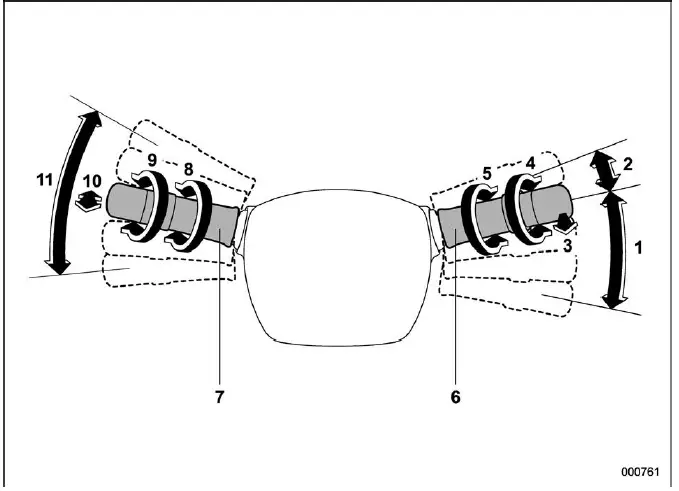

Subaru Ascent light and wiper control levers with detailed functions and positions

The Subaru Ascent provides intuitive control over lighting and wiper systems, ensuring optimal visibility in all driving conditions, from heavy rain to nighttime travel.

  1. Windshield wiper
  2. Mist
  3. Windshield washer
  4. Rear window wiper and washer switch
  5. Wiper intermittent time control switch /Sensor sensitivity control
  6. Windshield wiper and washer switches
  7. Light control switch
  8. Fog light switch
  9. Headlight ON/OFF/AUTO
  10. Headlight flasher High/Low beam change
  11. Turn signal lever

Combination meter

U.S.-spec. models

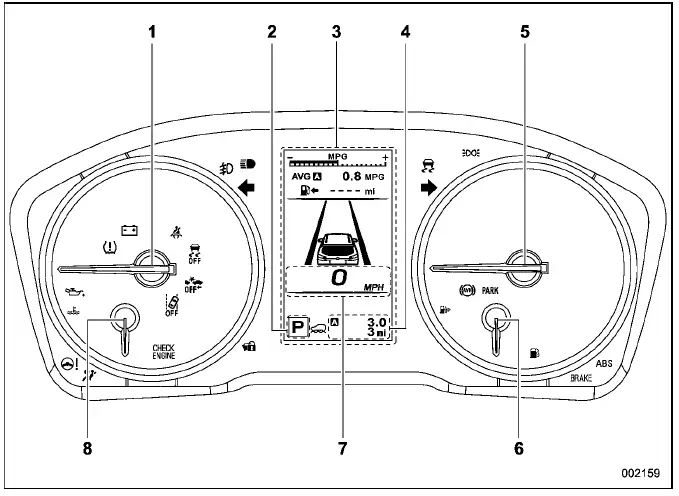

Subaru Ascent combination meter US specification with tachometer and digital display

The illustration above is a typical example. For some Subaru Ascent models, the combination meter may differ slightly depending on configuration and market specifications.

  1. Tachometer
  2. Select lever/gear position indicator
  3. Combination meter display
  4. Trip meter and odometer
  5. Speedometer
  6. Fuel gauge
  7. Digital speed screen
  8. Engine coolant temperature gauge

Except U.S.-spec. models

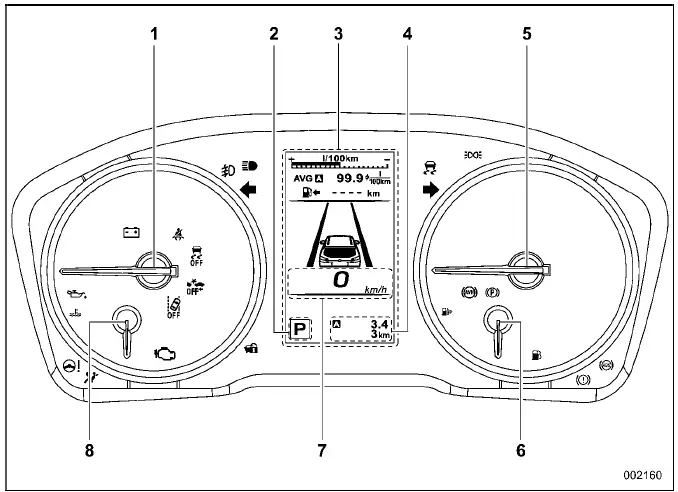

Subaru Ascent combination meter international version with gauges and display indicators

This version of the Subaru Ascent instrument cluster is adapted for non-U.S. markets, while maintaining the same core functionality and driver information display.

  1. Tachometer
  2. Select lever/gear position indicator
  3. Combination meter display
  4. Trip meter and odometer
  5. Speedometer
  6. Fuel gauge
  7. Digital speed screen
  8. Engine coolant temperature gauge
