Subaru Ascent 2018-2026 Owner's Manual: Instrument panel

Subaru Ascent 2018-2026 Owner's Manual / Illustrated index / Instrument panel

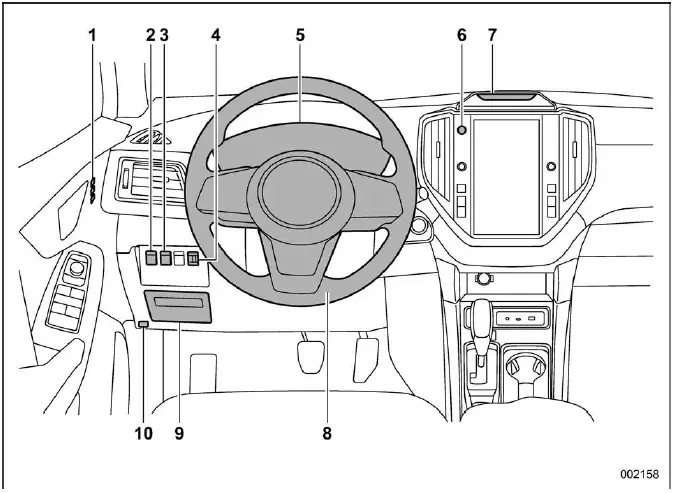

Subaru Ascent instrument panel layout with switches, gauges and driver monitoring camera

The Subaru Ascent instrument panel combines modern technology with user-friendly controls, allowing drivers to access critical information quickly while maintaining focus on the road.

  1. Seat position memory switch
  2. Power rear gate switch
  3. One-touch Interior Illumination switch
  4. Illumination brightness control dial
  5. Combination meter
  6. Hazard warning flasher switch
  7. Camera for Driver Monitoring System
  8. Tilt/Telescopic steering wheel
  9. Fuse box
  10. Hood release knob

NOTE

About the EyeSight system: Refer to the Owner's Manual supplement for the EyeSight system.

Steering wheel

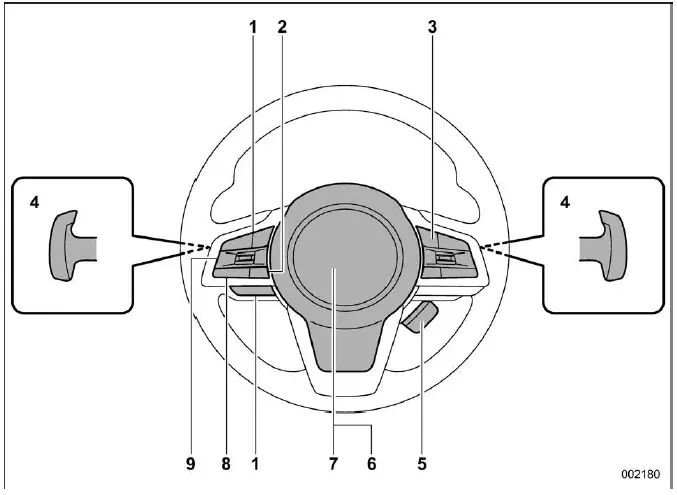

Subaru Ascent steering wheel with control buttons for audio, cruise and voice commands

The multifunction steering wheel in the Subaru Ascent integrates essential controls, allowing the driver to manage audio, communication, and driving assistance systems without distraction.

  1. Audio control switch*1
  2. Talk switch for voice command system*1
  3. Cruise control switches*2
  4. Shift paddles
  5. Heated Steering Wheel switch
  6. SRS airbag
  7. Horn
  8. Hands-free phone switch*1
  9. Control switches for combination meter display (color LCD)

*1: For details about how to use the switches, refer to the separate navigation/audio Owner's Manual.
*2: For details about how to use the switches, refer to the Owner's Manual supplement for the EyeSight system.
