Subaru Ascent 2018-2026 Owner's Manual: Interior

Subaru Ascent 2018-2026 Owner's Manual / Illustrated index / Interior

Passenger compartment area

Second-row captain seat models

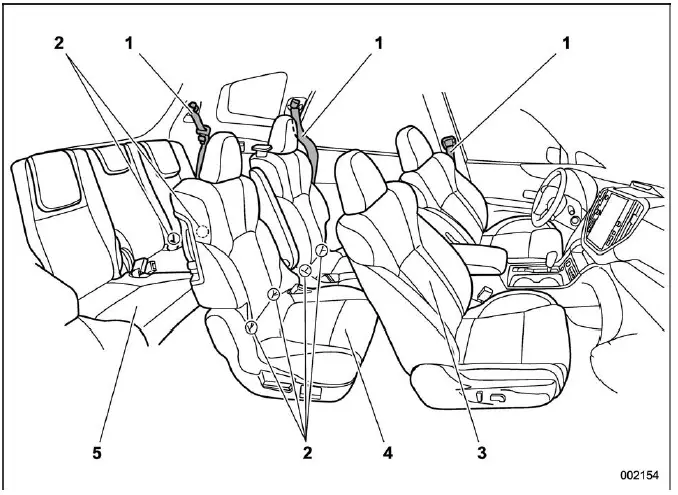

Subaru Ascent interior with second-row captain seats and seating configuration overview

The Subaru Ascent interior is thoughtfully designed to maximize passenger comfort and flexibility. In models equipped with second-row captain seats, occupants benefit from enhanced accessibility and individual seating comfort, making the Subaru Ascent ideal for families and long journeys.

  1. Seatbelts
  2. Lower anchorages for child restraint system
  3. Front seats
  4. Second-row seats
  5. Third-row seats

Second-row bench seat models

Subaru Ascent interior with second-row bench seat configuration and seating layout

For drivers who require additional seating capacity, the Subaru Ascent bench seat configuration offers increased passenger space while maintaining comfort and safety standards across all rows.

  1. Seatbelts
  2. Lower anchorages for child restraint system
  3. Front seats
  4. Second-row seats
  5. Third-row seats

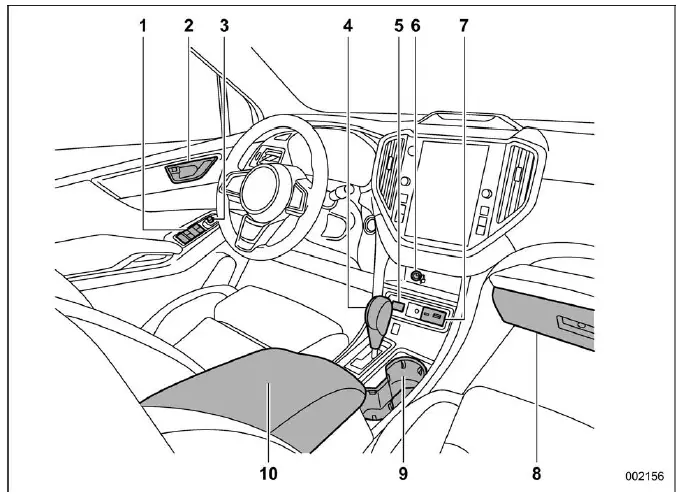

Subaru Ascent center console controls including gear selector, cup holders and power outlets

The Subaru Ascent cockpit area includes a wide range of intuitive controls and storage solutions, designed for ease of use and driver convenience. Every element is positioned ergonomically to support a seamless driving experience.

  1. Power windows switches
  2. Door locks
  3. Remote control mirror switch
  4. Select lever
  5. View monitor switch
  6. 12 V power outlet
  7. USB power supply
  8. Glove box
  9. Cup holder
  10. Center console

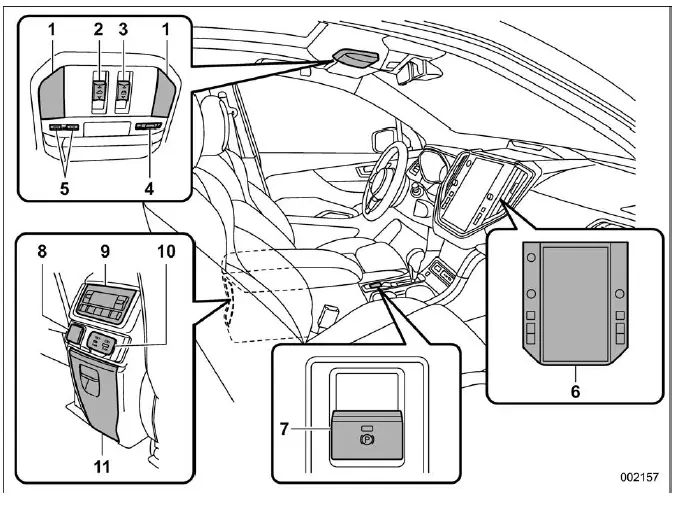

Subaru Ascent overhead console with lighting controls, moonroof switch and climate panel

Advanced convenience features in the Subaru Ascent include overhead controls, integrated infotainment systems, and climate management options, all contributing to a premium in-cabin environment.

  1. Map light switches
  2. Moonroof switch
  3. Sunshade switch
  4. Door interlock switch
  5. Button for SUBARU STARLINK
  6. Center Information Display (CID)/Climate control/Audio*/Navigation system*
  7. Electronic parking brake switch
  8. 120 V power outlet
  9. Rear climate control panel
  10. USB power supply
  11. Cup holder

*: For details about how to use the audio and navigation system, refer to the separate navigation/audio Owner's Manual.

NOTE

For models with SUBARU STARLINK: Refer to the Owner's Manual supplement for SUBARU STARLINK.
