Subaru Ascent 2018-2026 Owner's Manual: Where to place a child restraint system

The following guidelines represent SUBARU recommendations for correctly positioning child restraint systems in the Subaru Ascent. Proper placement is essential to ensure maximum safety and effectiveness of all restraint systems.

WARNING

• In the Subaru Ascent, certain child restraint systems may obstruct access to the seatbelt buckle of an adjacent seat.

  If a passenger cannot properly fasten their seatbelt, they must relocate to another seat. An improperly fastened seatbelt significantly increases the risk of serious injury or death in an accident.

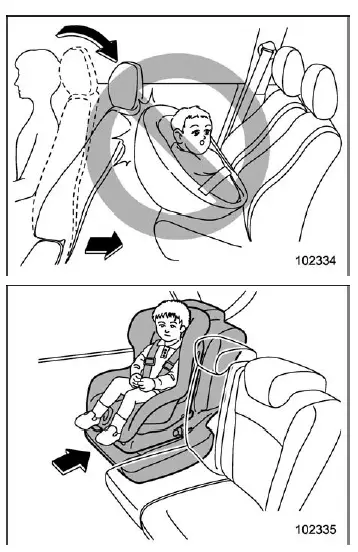

• If a child restraint system in the Subaru Ascent interferes with the driver’s seat position, relocate the child seat to another seating position.

  If relocation is not possible, adjust the front seat to eliminate contact and ensure safe installation.

Seven seater

Eight seater

A: Front passenger's seat

In the Subaru Ascent, installing a child restraint system in the front passenger seat is strongly discouraged due to the potential danger posed by the SRS airbag system.

B: Second-row seat window-side seating position, third-row seat left-side seating position

These positions in the Subaru Ascent are recommended for installing all types of child restraint systems.

They are equipped with the following safety features to ensure proper installation.

• Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR) seatbelts
• Lower anchorages (LATCH system)
• Tether anchorages

Some child restraint systems may not fit securely due to the contour of the seat cushion in the Subaru Ascent.

For best results, use only a child restraint system with a base that fits snugly against the seat and can be firmly secured using the seatbelt or anchors.

When installing a child restraint system in the Subaru Ascent using third-row lower anchorages, do not occupy the third-row center seat.

C: Applicable only for eight seaters

In this seating position, the Subaru Ascent provides the following equipment for installing a child restraint system.

• ALR/ELR seatbelts
• Lower anchorages (LATCH system)
• Tether anchorages

Due to seat contour design, some child restraint systems may not achieve a secure fit in this position.

Always select a system that sits firmly on the seat cushion and can be properly secured.

The Subaru Ascent second-row center seat is equipped with lower anchorages, which can be used together with the anchors on the adjacent seat to install a child restraint system.

When using these anchors, do not occupy the adjacent seat, as it may interfere with proper installation and safety.

If the child restraint system in the Subaru Ascent can move more than 1 inch (2.5 cm) side to side, reposition it to a second-row window seat or a third-row left-side seat for improved stability.

WARNING

• Even with advanced airbag systems, children in the Subaru Ascent remain at risk of serious injury if improperly restrained.

  Always secure children in the rear seats using an appropriate child restraint system based on their age, height, and weight.

  Because children are more vulnerable than adults, proper restraint is critical for their safety.

  Statistics confirm that rear seating positions are significantly safer for children than front seats.

• Do not use lower anchorages for center seating positions in the Subaru Ascent unless explicitly permitted by the child restraint system manufacturer.
• Never attach more than one lower hook to the same anchorage point.

• THIS SUBARU ASCENT IS EQUIPPED WITH A FRONT PASSENGER SRS AIRBAG. NEVER INSTALL A CHILD RESTRAINT SYSTEM IN THE FRONT PASSENGER SEAT.

  Doing so may place the child too close to the airbag, which can cause serious injury or death in the event of deployment.

• Do not allow children to rest their heads or bodies against the doors, pillars, or roof rails of the Subaru Ascent.

  Side and curtain airbags deploy with force and can cause severe injury even if the child is properly restrained.

• Always follow all installation instructions provided by the child restraint system manufacturer when installing in the Subaru Ascent.

  Improper installation may result in serious injury or death during sudden braking or a collision.

The Subaru Ascent is engineered with advanced safety systems, but correct placement and proper installation of child restraint systems remain essential for protecting young passengers in every driving situation.
