Subaru Ascent 2018-2026 Owner's Manual: Combination meter display (color LCD)

Subaru Ascent 2018-2026 Owner's Manual / Instruments and controls / Combination meter display (color LCD)

WARNING

When operating the combination meter display in your Subaru Ascent, always remain fully focused on safe driving conditions. Interacting with the display while the vehicle is moving can significantly reduce your attention to the road. If any adjustment or operation is required, it is strongly recommended to safely stop the Subaru Ascent before interacting with the system. Avoid prolonged glances at the display while driving, as even brief distractions may increase the risk of an accident.

The Subaru Ascent combination meter display (color LCD) is designed to provide a wide range of real-time vehicle information, ensuring the driver stays informed about the vehicle’s condition and driving parameters. In addition to standard data, the system actively monitors for irregularities and will display warning messages if any malfunction or issue is detected. The interface also allows customization of displayed content, making it adaptable to driver preferences and driving situations.

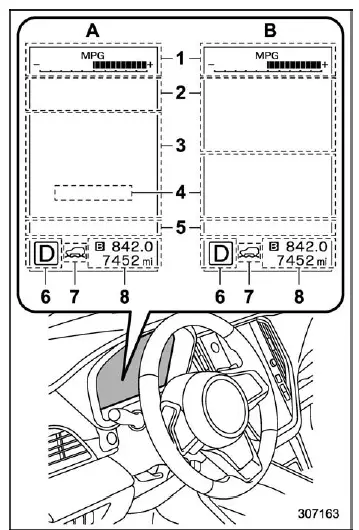

Subaru Ascent color LCD combination meter display showing multiple information zones
Combination meter display

  1. Meter information screen
  2. Warning screen
  3. EyeSight screen
  4. Digital speed screen
  5. Telltale screen
  6. Select lever/gear position indicator
  7. X-MODE indicator
  8. Odometer
  1. Activating the EyeSight system
  2. Deactivating the EyeSight system
